Biogas Pre-Processing · Macerator
Macerator
Macerator
Macerates and homogenizes organic waste and slurry into a uniform, pumpable consistency — avoiding the clogging of pipes, fittings and pumps downstream, and letting smaller-diameter pipework carry the same flow. Four series across integrated-motor and remote-drive configurations, with same-size or reduced outlets, covering 1 to 80 m³/hr.
- Throughput
- 1 – 80 m³/hr
- Drive capacity
- 0.75 – 15 HP
- Delivery head
- 3 m
- Series
- PMI · PMT · PMI-R · PMT-R
What it’s for
One Cutting Mechanism, Four Configurations
Every series shares the same cutting mechanism: a tri-hammer impeller works against a fixed cutter ring to macerate solids as they pass through, carried on a shaft running in a bearing behind a mechanical seal. What changes between series is how it's driven and how it connects.
PMI and PMT mount their own motor directly on top of the pump; PMI-R and PMT-R are remote-drive versions with no integrated motor, for driving from an external or belt-mounted source. Independently, PMI and PMI-R keep the same diameter at inlet and outlet; PMT and PMT-R reduce the outlet, so a smaller-bore discharge line can carry the same throughput.
Construction
Which Series Fits?
Four series, one mechanism — differing only in how they're driven and how the outlet is sized.
Specifications
Technical Data
- Columns
- Inlet / outlet · cutting ring · max. throughput at 3% dry substance · speed · drive · weight
- PMI 10
- 125 / 125 mm · 200 mm cutting ring · 10 m³/hr · 1500 rpm · 5.5 HP (4 kW) · 190 kg
- PMI 20
- 125 / 125 mm · 200 mm cutting ring · 20 m³/hr · 1500 rpm · 7.5 HP (5.5 kW) · 195 kg
- PMI 40
- 150 / 150 mm · 300 mm cutting ring · 40 m³/hr · 1000 rpm · 10 HP (7.5 kW) · 330 kg
- PMI 80
- 150 / 150 mm · 300 mm cutting ring · 80 m³/hr · 1000 rpm · 15 HP (11 kW) · 340 kg
- Columns
- Inlet / outlet · cutting ring · max. throughput at 3% dry substance · speed · drive · weight
- PMT 01
- 125 / 40 mm · 120 mm cutting ring · 1 m³/hr · 1500 rpm · 0.75 HP (0.55 kW) · 65 kg
- PMT 02
- 125 / 40 mm · 120 mm cutting ring · 2 m³/hr · 1500 rpm · 1 HP (0.75 kW) · 72 kg
- PMT 05
- 125 / 40 mm · 155 mm cutting ring · 5 m³/hr · 1500 rpm · 1.5 HP (1.1 kW) · 80 kg
- PMT 08
- 125 / 40 mm · 155 mm cutting ring · 8 m³/hr · 1500 rpm · 2 HP (1.5 kW) · 85 kg
- PMT 09
- 125 / 40 mm · 180 mm cutting ring · 10 m³/hr · 1500 rpm · 3 HP (2.2 kW) · 93 kg
- PMT 10
- 150 / 65 mm · 200 mm cutting ring · 10 m³/hr · 1500 rpm · 5.5 HP (4 kW) · 164 kg
- PMT 20
- 150 / 65 mm · 200 mm cutting ring · 20 m³/hr · 1500 rpm · 7.5 HP (5.5 kW) · 170 kg
- PMT 40
- 200 / 80 mm · 300 mm cutting ring · 40 m³/hr · 1000 rpm · 10 HP (7.5 kW) · 250 kg
- PMT 80
- 200 / 80 mm · 300 mm cutting ring · 80 m³/hr · 1000 rpm · 15 HP (11 kW) · 260 kg

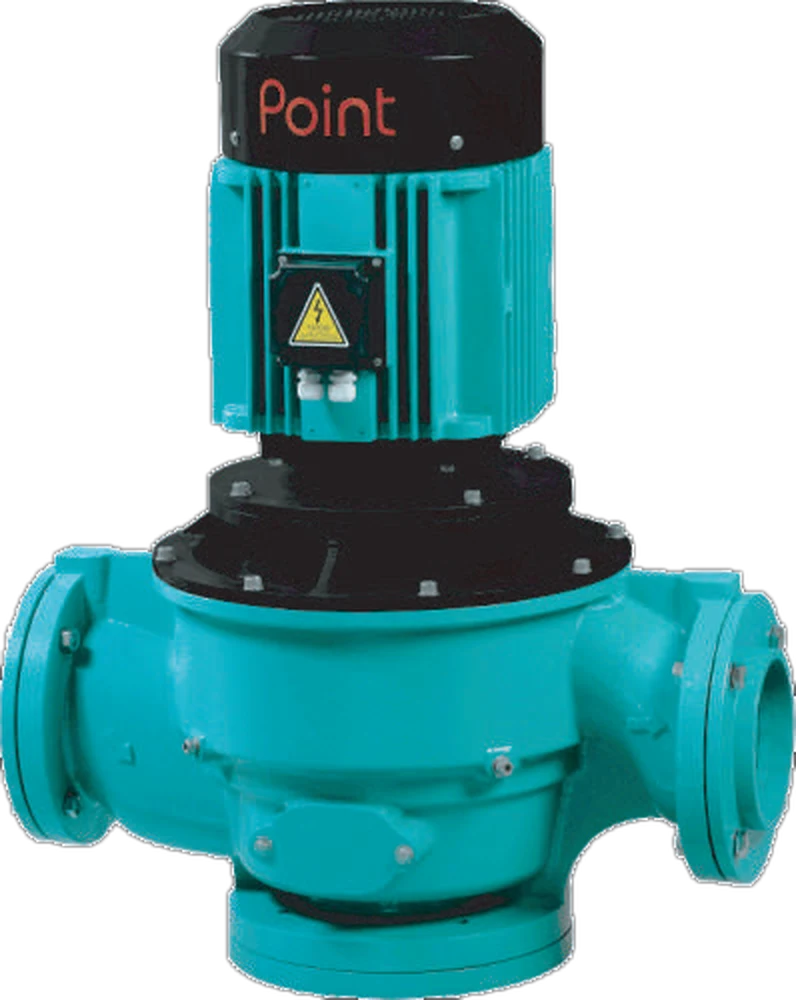

PMI Series — Integrated Motor, Same-Size Outlet

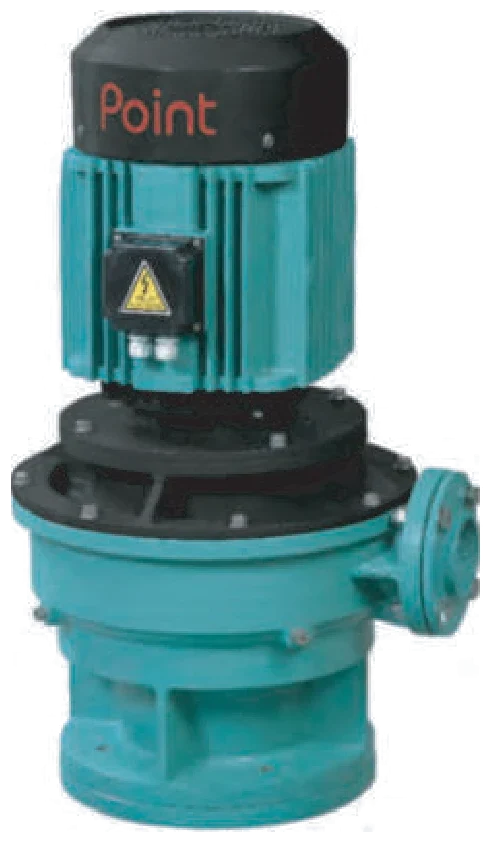

PMT Series — Integrated Motor, Reduced Outlet
- Columns
- Inlet / outlet · cutting ring · max. throughput at 3% dry substance · speed · drive · weight
- PMI-R 10
- 125 / 125 mm · 200 mm cutting ring · 10 m³/hr · 1500 rpm · 5.5 HP (4 kW) · 160 kg
- PMI-R 20
- 125 / 125 mm · 200 mm cutting ring · 20 m³/hr · 1500 rpm · 7.5 HP (5.5 kW) · 165 kg
- PMI-R 40
- 150 / 150 mm · 300 mm cutting ring · 40 m³/hr · 1000 rpm · 10 HP (7.5 kW) · 270 kg
- PMI-R 80
- 150 / 150 mm · 300 mm cutting ring · 80 m³/hr · 1000 rpm · 15 HP (11 kW) · 280 kg
- Columns
- Inlet / outlet · cutting ring · max. throughput at 3% dry substance · speed · drive · weight
- PMT-R 01
- 125 / 40 mm · 120 mm cutting ring · 1 m³/hr · 1500 rpm · 0.75 HP (0.55 kW) · 60 kg
- PMT-R 02
- 125 / 40 mm · 120 mm cutting ring · 2 m³/hr · 1500 rpm · 1 HP (0.75 kW) · 67 kg
- PMT-R 05
- 125 / 50 mm · 155 mm cutting ring · 5 m³/hr · 1500 rpm · 1.5 HP (1.1 kW) · 75 kg
- PMT-R 08
- 125 / 50 mm · 155 mm cutting ring · 8 m³/hr · 1500 rpm · 2 HP (1.5 kW) · 80 kg
- PMT-R 09
- 125 / 65 mm · 180 mm cutting ring · 10 m³/hr · 1500 rpm · 3 HP (2.2 kW) · 88 kg
- PMT-R 10
- 150 / 65 mm · 200 mm cutting ring · 10 m³/hr · 1500 rpm · 5.5 HP (4 kW) · 140 kg
- PMT-R 20
- 150 / 65 mm · 200 mm cutting ring · 20 m³/hr · 1500 rpm · 7.5 HP (5.5 kW) · 150 kg
- PMT-R 40
- 200 / 80 mm · 300 mm cutting ring · 40 m³/hr · 1000 rpm · 10 HP (7.5 kW) · 210 kg
- PMT-R 80
- 200 / 80 mm · 300 mm cutting ring · 80 m³/hr · 1000 rpm · 15 HP (11 kW) · 220 kg
- Permissible internal pressure
- 10 bar
- Permissible negative pressure
- 0.5 bar
- Permissible medium temperature
- 80°C
- Delivery head
- 3 m

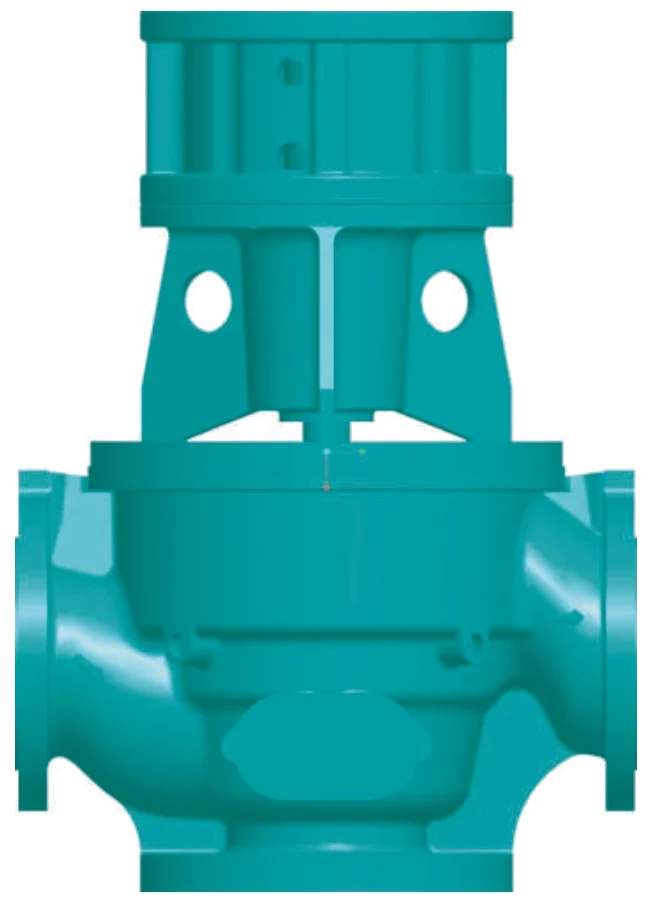

PMI-R Series — Remote Drive, Same-Size Outlet

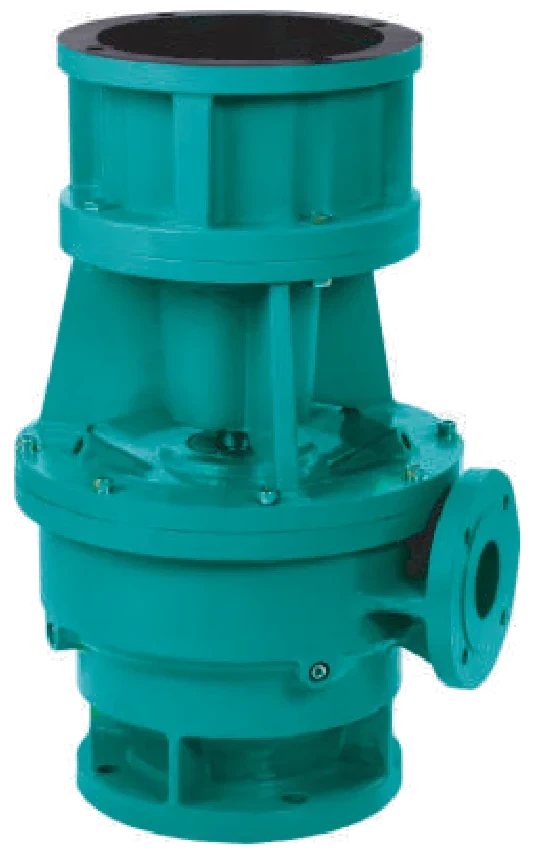

PMT-R Series — Remote Drive, Reduced Outlet
Operating limits — all series
Applications
Where It’s Specified
Breaks down mixed and inconsistent organic waste into a uniform slurry before it reaches the digester, for more predictable, efficient digestion.
Prevents the clogging of pipes, fittings and pumps downstream — letting smaller-diameter pipework carry the same throughput and saving on fitting costs.
Preparation, line chopping, mixing, processing and treatment of waste products across a wide range of industrial applications.
Feeds directly into the PCG chopper grinder pump for onward transfer of wet organic material.
Common questions
Frequently Asked Questions
What's the difference between PMI and PMT?
PMI keeps the same diameter at inlet and outlet. PMT reduces the outlet, so a smaller-bore discharge line can carry the same throughput.
What's the difference between the standard and "-R" series?
The standard PMI and PMT series mount an integrated motor directly on the pump. The "-R" (remote drive) series has no integrated motor, for driving from an external or belt-mounted source.
What throughput range is available?
1 to 80 m³/hr at 3% dry substance, across 26 models between the four series — sized to your flow rather than a single fixed capacity.
