Sewage · Agitator Slurry Pump
PA Series
Agitator Slurry Pump
Agitator pumps deliver kinetic energy to agitate solids and re-suspend them to a fluid state, so settled slurry can be pumped away. Built for industrial mining and power plants, from 2 to 300 m³/hr at heads up to 45 m.
- Flow
- 2 – 300 m³/hr
- Max head
- 45 m
- Particle size
- up to 135 mm
- Pipe size
- up to 150 mm
What it’s for
For Solids That Have Already Settled
Slurry doesn’t wait for the pump. Between starts, solids drop out and pack into a bed on the sump floor, where an ordinary pump draws the water off the top and leaves them behind. The PA Series answers that at the intake: an agitator on the end of the pump shaft, reaching 50 mm beyond the base, stirs the settled solids back into suspension so they leave with the flow.
Fifty-two catalogue models from 1 to 15 HP cover 32 to 150 mm discharges, passing particles up to 135 mm — the catalogue recommends sizing for 40% of the discharge. The agitator comes in FG200/GG20 or high chromium steel, on the same casing, seal and shaft construction as the PS sewage pump.
Construction
How It’s Built

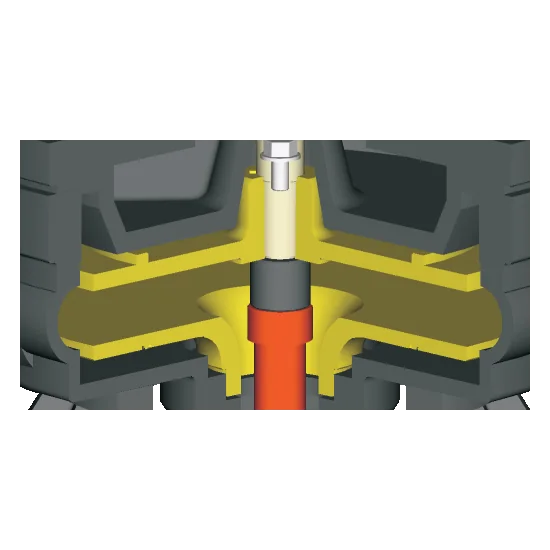

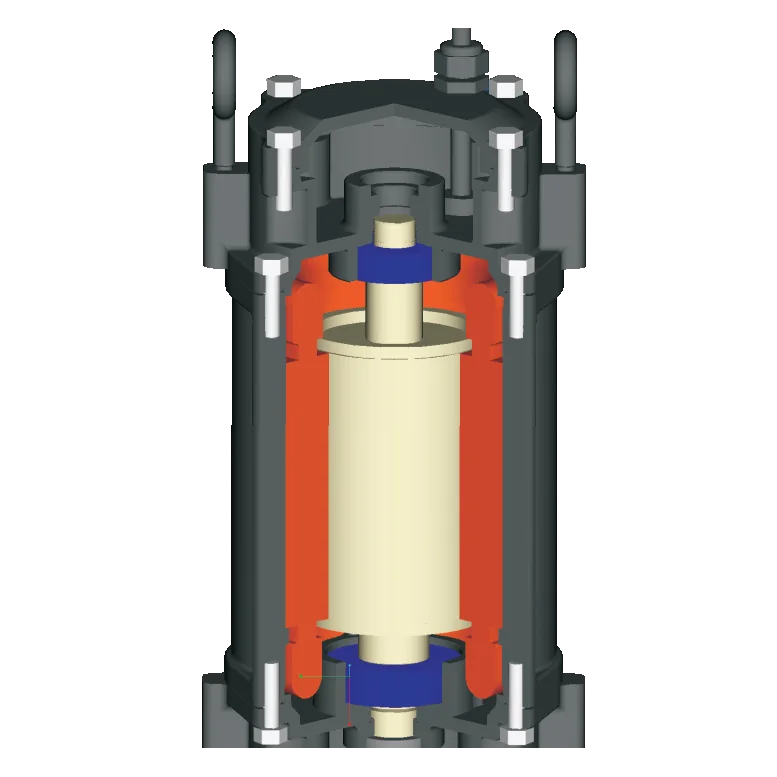

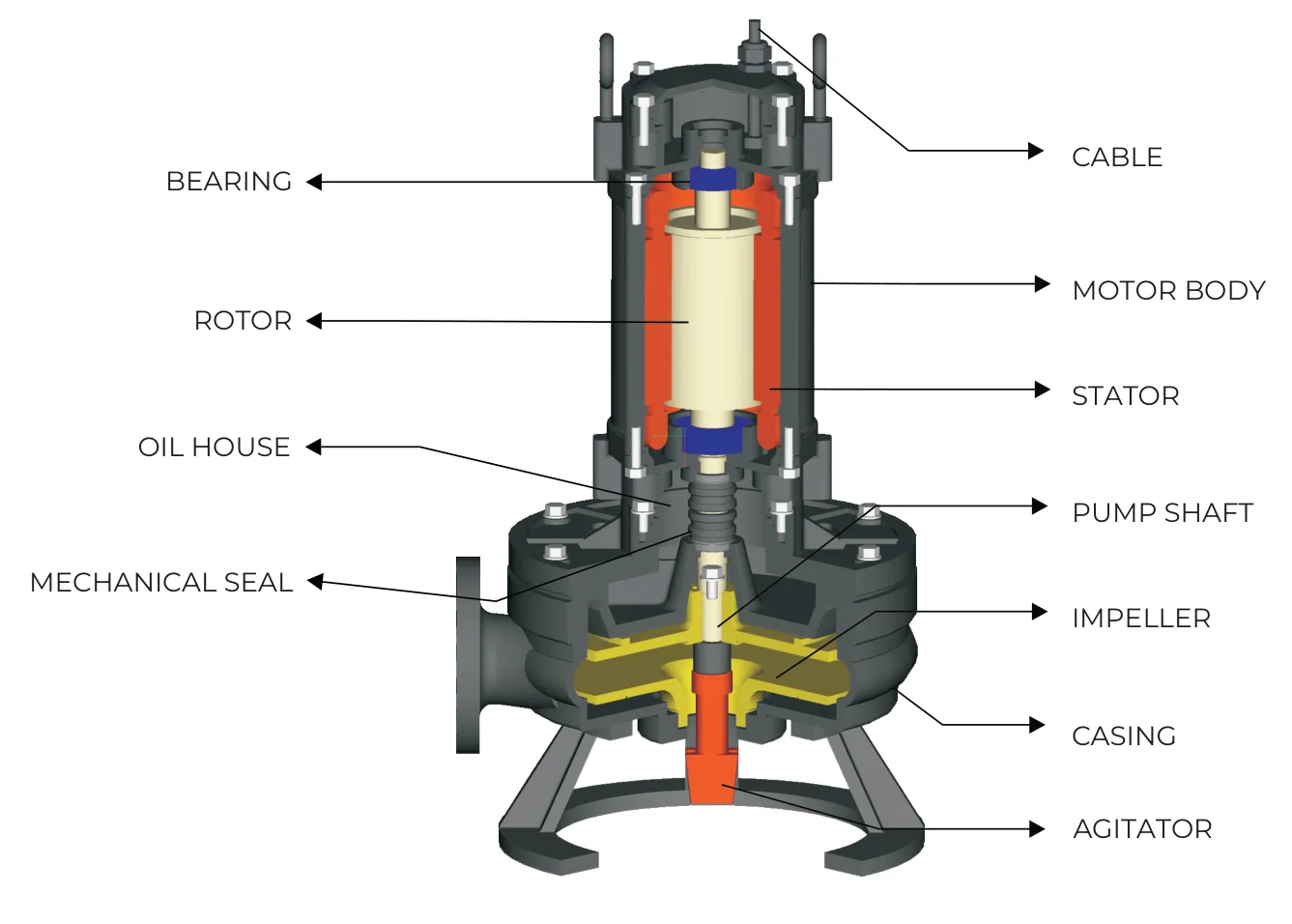

The PS sewage pump’s build, with one addition: an agitator on the end of the pump shaft, below the impeller.
Specifications
Technical Data
- Flow
- 2 – 300 m³/hr
- Maximum head
- 45 m
- Maximum particle size
- 135 mm
- Recommended particle size
- 40% of the discharge size
- Pipe size
- up to 150 mm
- Supply
- 230 V 1Ø · 415 V 3Ø
- Frequency
- 50 Hz
- Speed
- 1440 / 2800 rpm
- Protection
- IP68
- Insulation
- Class F
- Agitator attachment
- FG200 / GG20, high chromium steel
- Agitator extension
- 50 mm from the base

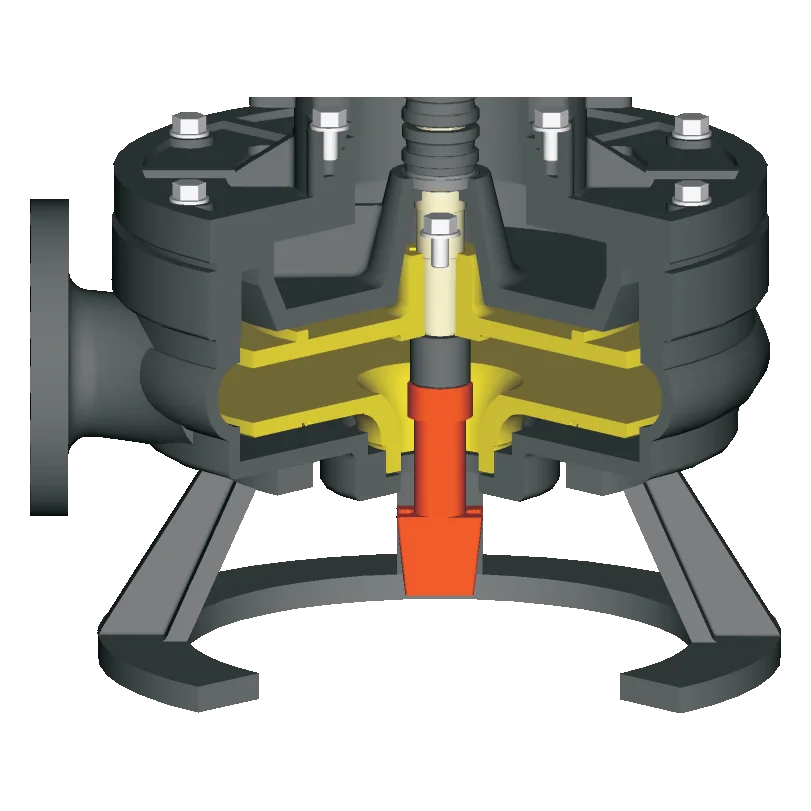

- Pump casing
- FG200 / GG20
- Impeller
- FG200 / GG20, steel castings
- Shaft
- SS431 / 1.4057 · SS420 / 1.4021

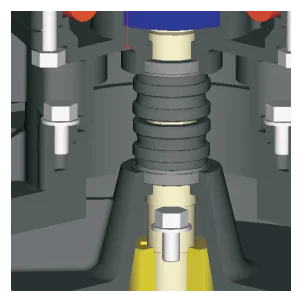

- Mechanical seal
- Carbon · ceramic · SIC · TC
Hydraulics
Rating
Construction
- 32PA-7-14-1.0
- 1.0 HP / 0.7 kW · 29 mm · A 212 · B 103 · D 32 · H 575
- 32PA-8-12-1.0
- 1.0 HP / 0.7 kW · 29 mm · A 212 · B 103 · D 32 · H 575
- 40PA-10-10-1.0
- 1.0 HP / 0.7 kW · 36 mm · A 212 · B 103 · D 40 · H 575
- 40PA-12-8-1.0
- 1.0 HP / 0.7 kW · 36 mm · A 212 · B 103 · D 40 · H 575
- 50PA-14-7-1.0
- 1.0 HP / 0.7 kW · 45 mm · A 212 · B 103 · D 50 · H 575
- 40PA-10-14-1.5
- 1.5 HP / 1.1 kW · 36 mm · A 212 · B 103 · D 40 · H 640
- 40PA-12-12-1.5
- 1.5 HP / 1.1 kW · 36 mm · A 212 · B 103 · D 40 · H 640
- 50PA-14-10-1.5
- 1.5 HP / 1.1 kW · 45 mm · A 212 · B 103 · D 50 · H 640
- 50PA-16-9-1.5
- 1.5 HP / 1.1 kW · 45 mm · A 212 · B 103 · D 50 · H 640
- 50PA-8-18-1.5
- 1.5 HP / 1.1 kW · 45 mm · A 212 · B 103 · D 50 · H 640
- 50PA-12-16-2.0
- 2.0 HP / 1.5 kW · 45 mm · A 212 · B 103 · D 50 · H 640
- 50PA-14-14-2.0
- 2.0 HP / 1.5 kW · 45 mm · A 212 · B 103 · D 50 · H 640
- 50PA-16-12-2.0
- 2.0 HP / 1.5 kW · 45 mm · A 212 · B 103 · D 50 · H 640
- 50PA-11-18-2.0
- 2.0 HP / 1.5 kW · 45 mm · A 212 · B 103 · D 50 · H 640
- 50PA-15-20-3.0
- 3.0 HP / 2.2 kW · 45 mm · A 212 · B 103 · D 50 · H 570
- 50PA-25-15-3.0
- 3.0 HP / 2.2 kW · 45 mm · A 212 · B 103 · D 50 · H 570
- 50PA-42-9-3.0
- 3.0 HP / 2.2 kW · 45 mm · A 212 · B 103 · D 50 · H 570
- 65PA-25-15-3.0
- 3.0 HP / 2.2 kW · 59 mm · A 245 · B 163 · D 65 · H 570
- 80PA-50-8-3.0
- 3.0 HP / 2.2 kW · 72 mm · A 279 · B 177 · D 80 · H 570
- 80PA-40-7-3.0
- 3.0 HP / 2.2 kW · 72 mm · A 279 · B 177 · D 80 · H 570
- 50PA-17-25-4.0
- 4.0 HP / 3.0 kW · 45 mm · A 238 · B 123 · D 50 · H 570
- 65PA-37-13-4.0
- 4.0 HP / 3.0 kW · 59 mm · A 245 · B 163 · D 65 · H 570
- 80PA-43-13-4.0
- 4.0 HP / 3.0 kW · 72 mm · A 279 · B 177 · D 80 · H 570
- 80PA-50-10-4.0
- 4.0 HP / 3.0 kW · 72 mm · A 279 · B 177 · D 80 · H 570
- 50PA-24-20-5.0
- 5.0 HP / 3.7 kW · 45 mm · A 238 · B 123 · D 50 · H 660
- 50PA-40-15-5.0
- 5.0 HP / 3.7 kW · 45 mm · A 238 · B 123 · D 50 · H 660
- 50PA-15-40-7.5
- 7.5 HP / 5.5 kW · 45 mm · A 193 · B 203 · D 50 · H 740
- 50PA-25-32-7.5
- 7.5 HP / 5.5 kW · 45 mm · A 193 · B 203 · D 50 · H 740
- 50PA-25-38-10.0
- 10 HP / 7.5 kW · 45 mm · A 193 · B 203 · D 50 · H 740
- 65PA-25-28-5.0
- 5.0 HP / 3.7 kW · 55 mm · A 274 · B 202 · D 65 · H 660
- 80PA-40-15-5.0
- 5.0 HP / 3.7 kW · 72 mm · A 279 · B 177 · D 80 · H 660
- 80PA-60-13-5.0
- 5.0 HP / 3.7 kW · 72 mm · A 279 · B 177 · D 80 · H 660
- 80PA-50-25-10.0
- 10 HP / 7.5 kW · 72 mm · A 300 · B 195 · D 80 · H 740
- 100PA-80-7-4.0
- 4.0 HP / 3.0 kW · 90 mm · A 250 · B 186 · D 100 · H 570
- 100PA-100-5-4.0
- 4.0 HP / 3.0 kW · 90 mm · A 250 · B 186 · D 100 · H 570
- 100PA-80-9-5.0
- 5.0 HP / 3.7 kW · 90 mm · A 250 · B 186 · D 100 · H 660
- 100PA-100-7-5.0
- 5.0 HP / 3.7 kW · 90 mm · A 250 · B 186 · D 100 · H 660
- 100PA-65-15-7.5
- 7.5 HP / 5.5 kW · 90 mm · A 292 · B 194 · D 100 · H 740
- 100PA-110-10-7.5
- 7.5 HP / 5.5 kW · 90 mm · A 292 · B 194 · D 100 · H 740
- 100PA-80-20-10.0
- 10 HP / 7.5 kW · 90 mm · A 292 · B 194 · D 100 · H 740
- 100PA-100-15-10.0
- 10 HP / 7.5 kW · 90 mm · A 292 · B 194 · D 100 · H 740
- 100PA-80-22-12.5
- 12.5 HP / 9.3 kW · 90 mm · A 266 · B 175 · D 100 · H 890
- 100PA-100-16-12.5
- 12.5 HP / 9.3 kW · 90 mm · A 266 · B 175 · D 100 · H 890
- 100PA-50-35-15.0
- 15 HP / 11 kW · 90 mm · A 266 · B 175 · D 100 · H 890
- 100PA-70-30-15.0
- 15 HP / 11 kW · 90 mm · A 266 · B 175 · D 100 · H 890
- 150PA-110-15-10.0
- 10 HP / 7.5 kW · 135 mm · A 286 · B 227 · D 150 · H 765
- 150PA-110-16-12.5
- 12.5 HP / 9.3 kW · 135 mm · A 286 · B 227 · D 150 · H 890
- 150PA-145-9-10.0
- 10 HP / 7.5 kW · 135 mm · A 286 · B 227 · D 150 · H 765
- 150PA-210-7-10.0
- 10 HP / 7.5 kW · 135 mm · A 286 · B 227 · D 150 · H 765
- 150PA-150-9-12.5
- 12.5 HP / 9.3 kW · 135 mm · A 286 · B 227 · D 150 · H 890
- 150PA-220-7-12.5
- 12.5 HP / 9.3 kW · 135 mm · A 286 · B 227 · D 150 · H 890
- 150PA-170-15-15.0
- 15 HP / 11 kW · 135 mm · A 286 · B 227 · D 150 · H 1040

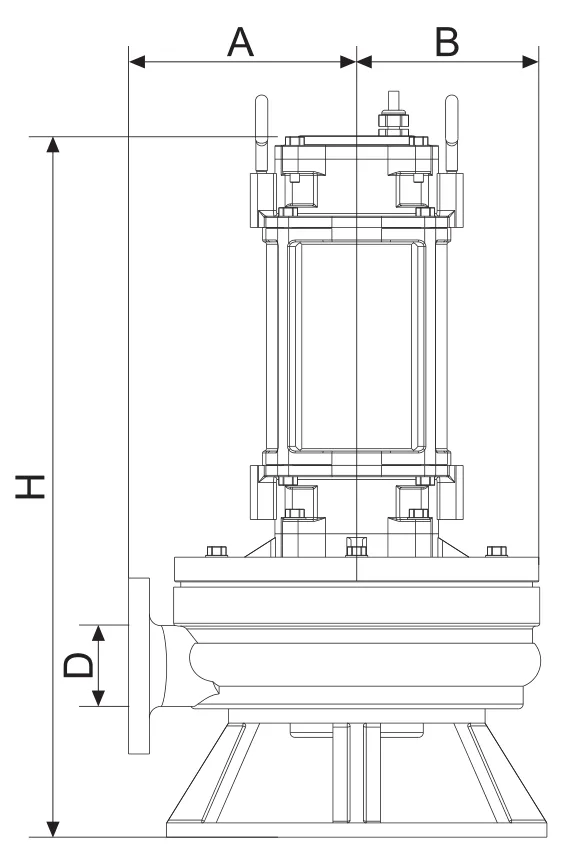

Models — motor · max particle · dimensions in mm, letters as on the drawing
Applications
Where It’s Specified
Sand mining, tailings ponds, and sand and gravel excavation — wherever slurry solids settle between pumping and have to be lifted back into the flow.
Fly ash and bottom ash pits, where the ash packs onto the floor and would otherwise choke the intake.
Mill scale and slag pits in steel plants, and sumps in cement plants carrying heavy, abrasive solids — with the agitator in high chromium steel.
Cleaning out tanks in place of vacuum trucks, hazardous waste clean-up, and agricultural wash-down pits where produce is washed.
Lifting silt from settled ponds, channels and sumps, and unloading slurry from barges.
Removing spent filter media and settled sludge in sewage and effluent treatment plants. See industries we serve →
Compare
Which Sewage Pump?
Point’s sewage pumps differ in what they do with the solids — stir them back up, pass them, cut them or chop them — and at what flow.
-
PA SeriesYou’re here
Agitates settled solids back into suspension before transfer — 2–300 m³/hr to 45 m, particles up to 135 mm.
-
PS Series — Sewage
Passes solids and fibre through a large discharge — 2–800 m³/hr to 45 m, particles up to 270 mm.
-
PC Series — Cutter
Stationary and rotating cutters hardened to 55–60 HRC for fibrous and hard material, 2–300 m³/hr to 45 m.
-
PG Series — Grinder
Solid- and fibre-laden sewage at 2–300 m³/hr to 45 m head — particles up to 135 mm.
-
PCG Series — Chopper Grinder
Chopper cutter plus hardened screw rotor for oversized and stringy material, 7–1000 m³/hr to 30 m — the series for biogas feedstock.
Common questions
Frequently Asked Questions
How does the agitator work?

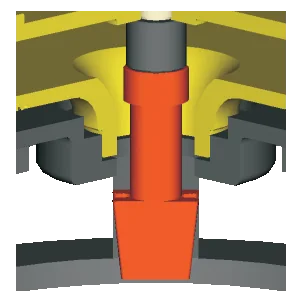

It sits on the end of the pump shaft, below the impeller, and turns with it. Reaching 50 mm beyond the base, it stirs the solids that have settled at the intake back into suspension, so the pump draws them in as slurry instead of leaving a bed behind.
PA or PS — which do we need?
Choose the PA where solids settle and pack down — in a sump that stands between pump starts, or a slurry that drops out quickly. Where the solids stay suspended in the flow, the PS Series passes them without an agitator.
How do I read a PA model name?
Left to right: the discharge size in mm, the series, then the duty point — flow in m³/hr and head in metres — and the motor in HP. 50PA-25-15-3.0 is a 50 mm pump delivering about 25 m³/hr at 15 m head on a 3 HP motor.
How large a solid can it pass?
The catalogue recommends particles up to 40% of the discharge size: 13 mm on a 32 mm model, 20 mm on a 50 mm, 40 mm on a 100 mm and 60 mm on a 150 mm. For abrasive solids, ask for the agitator in high chromium steel.
