Biogas Plant · Portable & At-Site
Portable Biogas Plant
Packaged Biogas Plant
A ready-built, packaged plant that converts daily food waste into usable biogas and organic manure — sized for homes, hostels, hotels, canteens, apartments, institutions and commercial kitchens. Nine capacity models across two ranges, from a 20 kg/day household unit to a 500 kg/day institutional plant, without a custom civil build.
- Waste capacity
- 20 – 500 kg/day
- Bio-gas yield
- 1.8 – 50 m³
- LPG equivalent
- 0.8 – 22.5 kg/day
- Ranges
- Portable · At-Site
What it’s for
How It Works

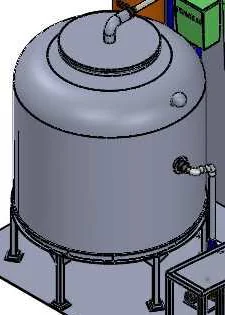

Food waste is fed into the inlet chamber along with water. Inside the digester tank, anaerobic bacteria break down the organic waste and generate biogas, which can be used for cooking, heating or other energy applications, while the slurry outlet produces nutrient-rich organic manure.
The Portable range (PB-2.5 to PB-20) ships as a compact, self-contained unit for a single kitchen or household. The At-Site range (PB-50 to PB-500) scales the same process up for hostels, institutions and larger commercial kitchens, built at the location rather than delivered fully assembled.
Every plant is engineered for safe, reliable operation, with the design tailored to the feedstock, capacity and output required. Premium digesters, biogas purification and gas compression systems are delivered as a turnkey project — installation, commissioning and technical support included — on robust, precision-engineered equipment built for long service, from a team with long experience designing and manufacturing industrial biogas plants.
Construction
How It’s Built
Specifications
Technical Data
- Columns
- Biogas yield · waste capacity · LPG equivalent · area required (L × W × H)
- PB-2.5
- 1.8 – 2.2 m³ biogas · 20 – 25 kg waste · 0.8 – 1.0 kg LPG equivalent · 5.5 × 2.4 × 2.95 m
- PB-5
- 3.5 – 4.5 m³ biogas · 40 – 50 kg waste · 1.6 – 2.0 kg LPG equivalent · 5.5 × 2.4 × 2.95 m
- PB-10
- 7.0 – 9.0 m³ biogas · 80 – 100 kg waste · 3.0 – 4.0 kg LPG equivalent · 6.8 × 3.9 × 2.9 m
- PB-15
- 9.5 – 11 m³ biogas · 100 – 125 kg waste · 4.5 – 5.0 kg LPG equivalent · 6.8 × 3.9 × 2.9 m
- PB-20
- 13.5 – 16.5 m³ biogas · 150 – 180 kg waste · 6.5 – 7.5 kg LPG equivalent · 6.8 × 3.9 × 4.5 m
Portable Range — PB-2.5 to PB-20
- Columns
- Biogas yield · waste capacity · LPG equivalent · area required (L × W × H)
- PB-50
- 4 – 5 m³ biogas · 50 kg waste · 1.8 – 2.25 kg LPG equivalent · 5 × 5 × 3 m
- PB-100
- 8 – 10 m³ biogas · 100 kg waste · 3.6 – 4.5 kg LPG equivalent · 10 × 5 × 3 m
- PB-250
- 20 – 25 m³ biogas · 250 kg waste · 9 – 11.25 kg LPG equivalent · 12 × 5 × 3 m
- PB-500
- 40 – 50 m³ biogas · 500 kg waste · 18 – 22.5 kg LPG equivalent · 15 × 8 × 3 m
At-Site Range — PB-50 to PB-500
Applications
Where It’s Specified
Compact Portable models for individual homes and residential apartment blocks, cutting LPG dependency and daily food-waste disposal.
Hotels, convention centres, wedding halls, malls and retail food outlets — sized to match kitchen and event waste volumes.
Educational institutes, hospitals, municipalities and goshalas — At-Site models for higher, steadier waste volumes.
Manufacturing sites and corporate campuses managing canteen and process organic waste on site.
Common questions
Frequently Asked Questions
What size plant do we need?
Sizing follows your daily waste volume in kilograms — nine models across the Portable and At-Site ranges span 20 to 500 kg/day. Tell us your volume and we'll match it to a model.
What can the biogas be used for?
Cooking, heating, or other energy applications — the digester also produces nutrient-rich organic manure through the slurry outlet.
What's the difference between Portable and At-Site?
Portable (PB-2.5 to PB-20) is a compact, self-contained unit for a single kitchen or household. At-Site (PB-50 to PB-500) scales the same process up and is built at the location, for hostels, institutions and larger commercial kitchens.
