Sewage · Drainage Pump

PDS Series

Drainage Pump

Designed for pumping drainage water or effluent in residential, commercial or industrial applications — grey water, drainage and effluent containing soft solids up to 20 mm. A high-speed 2880 rpm series from 1 to 10 HP, for single- and three-phase supplies.

Request a Spec Sheet See the Full Range

Point PDS Series submersible drainage pump: stainless motor body between cast-iron end covers, with a flanged side discharge — PDS Series

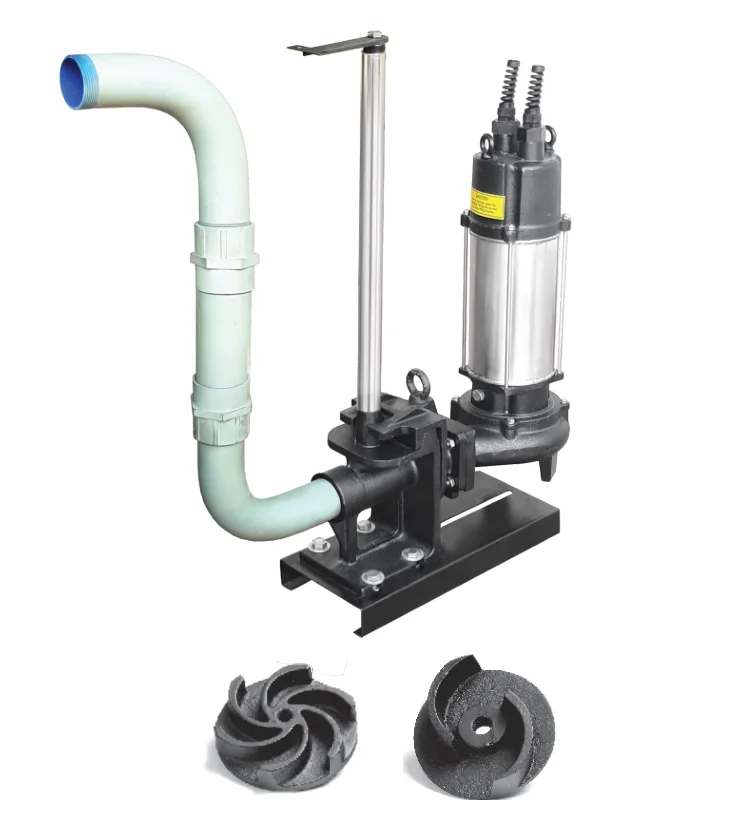

PDS pump installed on an auto-coupling with its guide rail and discharge pipe, and the series’ two impeller types — vortex and two-vane — PDS Series

Flow: up to 100 m³/hr
Max head: 30 m
Solids: up to 20 mm
Rating: 1 – 10 HP

What it’s for

The Everyday Pump for Drainage and Grey Water

Most of what collects in a building’s sump is water carrying soft solids — floor drainage, washing, grey water, light effluent. It doesn’t need a cutter or a chopper; it needs a pump that runs continuously and passes the solids there are. The PDS does that at 2880 rpm, with a vortex impeller on most models and soft solids up to 20 mm, and its impeller leaves a wide passage from suction to delivery so nothing clogs inside the pump.

Twenty-four models across 50, 65, 80 and 100 mm discharge sizes cover flows up to 100 m³/hr and heads up to 30 m, built to the same standards as the rest of Point’s sewage range: CI/GG20 castings, stainless shafts, a mechanical seal and an IP68 motor rated for continuous duty. Where the water carries solid or fibrous material, the PS and PC sewage series take over.

Construction

How It’s Built

Five components, built to the same construction standards as Point’s sewage range — for drainage that runs all day, not now and then.

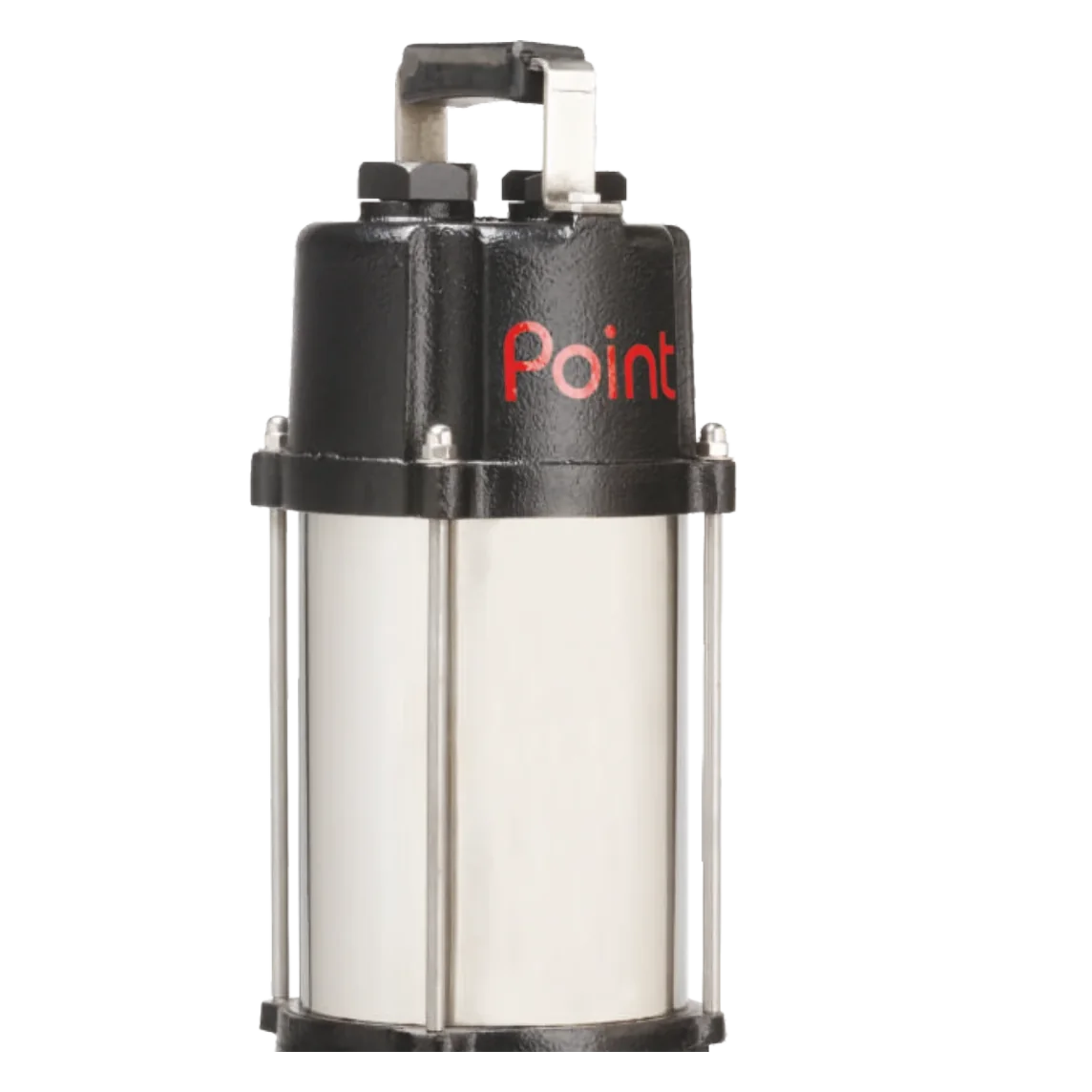

PDS motor: stainless body between cast-iron covers, with the lifting handle — 01 **Motor** 1 – 10 HP · 2880 rpm · 1Ø or 3Ø, 50 Hz · IP68 · Class F · S1 continuous

Cutaway of a Point sewage pump’s mechanical seal on the pump shaft, below the oil chamber — 02 **Mechanical Seal** Carbon · ceramic · SIC · TC

Cutaway of a Point sewage pump’s shaft running from the rotor through the seal to the impeller — 03 **Shaft** SS431 / 1.4057 or SS420 / 1.4021

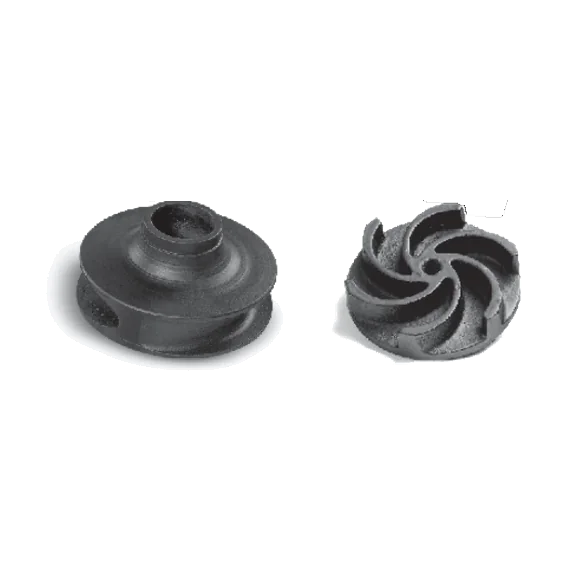

The PDS Series’ two impeller types: two-vane and vortex — 04 **Impeller** Vortex, or two-vane on three models · CI / GG20 or SS

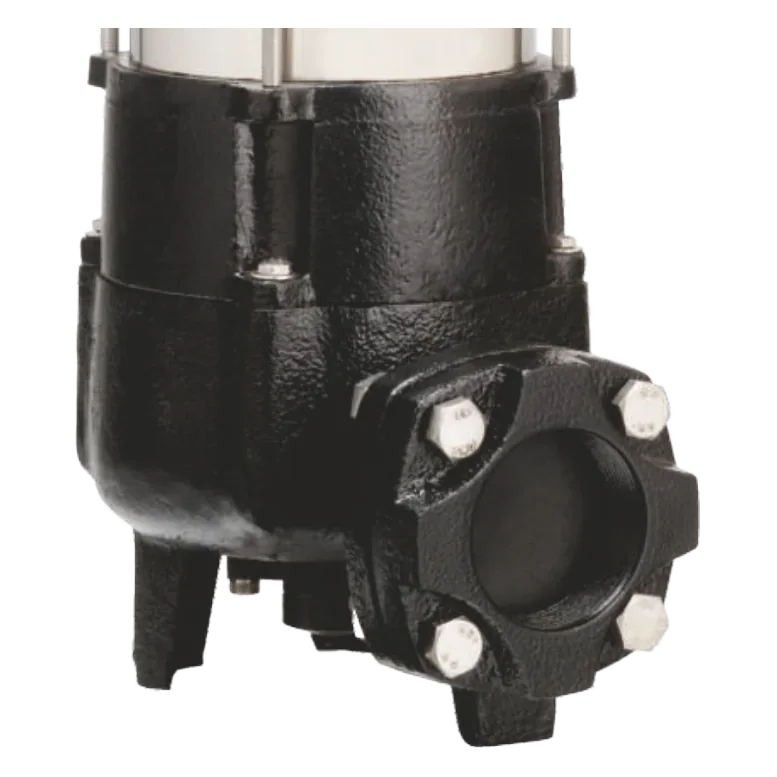

PDS cast-iron pump casing with its flanged side discharge — 05 **Pump Casing** CI / GG20

Specifications

Technical Data

Flow: up to 100 m³/hr
Maximum head: 30 m
Solids: up to 20 mm
Pumping medium: Grey water, drainage, effluent containing soft solids — sewage without long fibres
pH range: 6 – 9
Liquid temperature: 40°C max
Discharge sizes: 50, 65, 80 and 100 mm
Motor: 1.0 – 10 HP (0.75 – 7.5 kW)
Speed: 2880 rpm
Supply: 1Ø and 3Ø, 50 Hz
Protection: IP68
Insulation: Class F
Duty: S1 continuous
Pump casing: CI / GG20
Impeller: CI / GG20 or SS
Impeller type: Vortex · two-vane on 50PDS-11-18-3.0, 65PDS-18-18-3.0 and 80PDS-26-12-3.0
Shaft: SS431 / 1.4057 · SS420 / 1.4021
Mechanical seal: Carbon · ceramic · SIC · TC

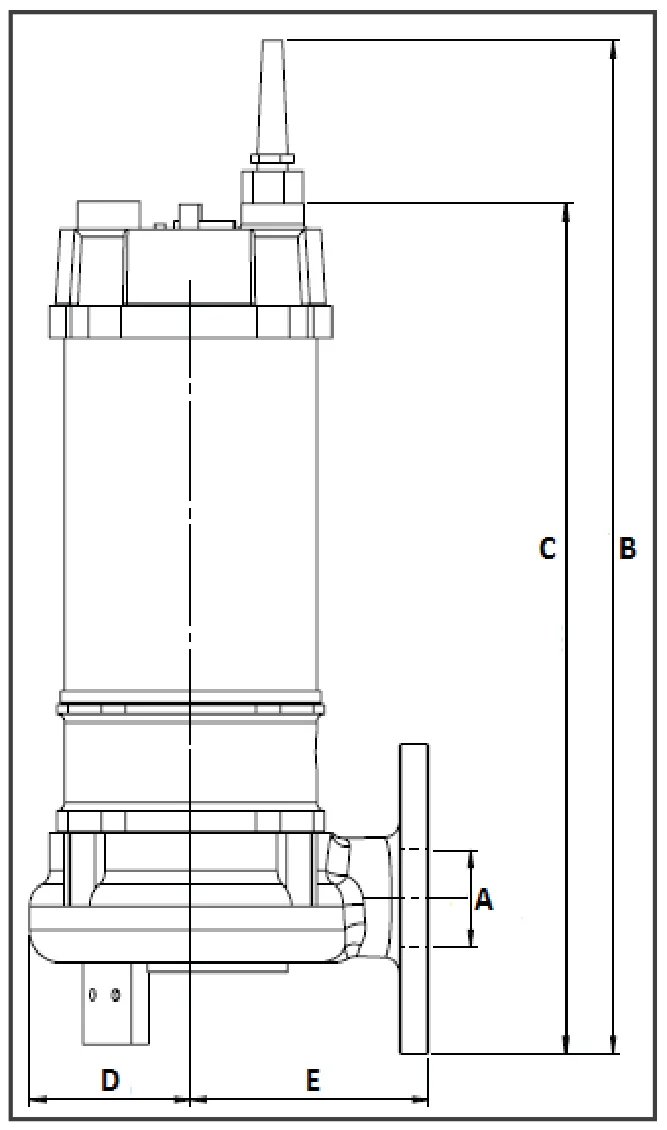

50PDS-10-8-1.0: Vortex · 1.0 HP / 0.7 kW · A 50 · B 615 · C 487 · D 75 · E 130
50PDS-12-10-1.5: Vortex · 1.5 HP / 1.1 kW · A 50 · B 640 · C 512 · D 75 · E 150
50PDS-14-12-2.0: Vortex · 2.0 HP / 1.5 kW · A 50 · B 685 · C 557 · D 85 · E 180
65PDS-20-10-2.0: Vortex · 2.0 HP / 1.5 kW · A 65 · B 675 · C 595 · D 100 · E 130
65PDS-24-12-3.0: Vortex · 3.0 HP / 2.2 kW · A 65 · B 675 · C 595 · D 100 · E 130
65PDS-40-9-3.0: Vortex · 3.0 HP / 2.2 kW · A 65 · B 675 · C 595 · D 100 · E 130
80PDS-36-8-3.0: Vortex · 3.0 HP / 2.2 kW · A 80 · B 700 · C 610 · D 140 · E 240
80PDS-60-12-5.0: Vortex · 5.0 HP / 3.7 kW · A 80 · B 745 · C 615 · D 100 · E 160
100PDS-50-7-3.0: Vortex · 3.0 HP / 2.2 kW · A 100 · B 720 · C 640 · D 100 · E 130
100PDS-52-10-5.0: Vortex · 5.0 HP / 3.7 kW · A 100 · B 720 · C 640 · D 100 · E 130
50PDS-14-7-1.0: Vortex · 1.0 HP / 0.7 kW · A 50 · B 600 · C 471 · D 75 · E 130
50PDS-16-9-1.5: Vortex · 1.5 HP / 1.1 kW · A 50 · B 660 · C 532 · D 75 · E 130
50PDS-14-14-2.0: Vortex · 2.0 HP / 1.5 kW · A 50 · B 685 · C 557 · D 85 · E 180
50PDS-12-16-2.0: Vortex · 2.0 HP / 1.5 kW · A 50 · B 685 · C 557 · D 85 · E 180
50PDS-11-18-3.0: Two-vane · 3.0 HP / 2.2 kW · A 50 · B 685 · C 587 · D 85 · E 180
50PDS-24-15-3.0: Vortex · 3.0 HP / 2.2 kW · A 50 · B 640 · C 550 · D 100 · E 130
65PDS-18-18-3.0: Two-vane · 3.0 HP / 2.2 kW · A 65 · B 675 · C 595 · D 100 · E 130
65PDS-24-18-5.0: Vortex · 5.0 HP / 3.7 kW · A 65 · B 720 · C 640 · D 100 · E 130
80PDS-26-12-3.0: Two-vane · 3.0 HP / 2.2 kW · A 80 · B 700 · C 610 · D 100 · E 240
65PDS-20-24-5.0: Vortex · 5.0 HP / 3.7 kW · A 65 · B 720 · C 640 · D 100 · E 130
65PDS-45-20-7.5: Vortex · 7.5 HP / 5.5 kW · A 65 · B 810 · C 640 · D 100 · E 130
80PDS-20-20-3.0: Vortex · 3.0 HP / 2.2 kW · A 80 · B 745 · C 615 · D 100 · E 160
80PDS-50-18-7.5: Vortex · 7.5 HP / 5.5 kW · A 80 · B 810 · C 680 · D 230 · E 380
80PDS-65-18-10.0: Vortex · 10 HP / 7.5 kW · A 80 · B 860 · C 715 · D 175 · E 275

Applications

Where It’s Specified

Building sumps & basements

Lifting drainage water from basement sumps, lift pits and service areas in apartments, offices and commercial buildings up to the sewer line.

Grey water

Grey water from kitchens, laundries and washrooms, carrying soft solids up to 20 mm, on its way to treatment or the drain.

Effluent in treatment plants

Moving effluent with soft solids from collection pits into a sewage or effluent treatment plant, and between its stages.

Industrial drainage

Site and process drainage in factories and workshops — effluent within pH 6–9 and up to 40°C. See industries we serve →

Compare

Drainage Pump or Sewage Pump?

The PDS is for water that carries only soft solids. When the solids are larger, fibrous or hard — or the flow is far bigger — another series takes over.

PDS SeriesYou’re here
Grey water, drainage and effluent with soft solids to 20 mm — 1–10 HP at 2880 rpm, up to 100 m³/hr and 30 m head.
PS Series — Sewage
Sewage, sludge and surface water carrying solid or fibrous material — particles up to 270 mm, 2–800 m³/hr to 45 m.
PC Series — Cutter
Hardened cutters for fibrous material, hard dirt and septic effluent — particles up to 135 mm, 2–300 m³/hr to 45 m.
Horizontal Open Well — High Discharge
Clear water in sewage treatment plants — treated water transfer, filtration units and utility water, up to 45 m³/hr and 35 m.
High Discharge — Submersible Sewage
Sewage and effluent at large-scale flow — up to 3000 m³/hr and 40 m, solids up to 100 mm.
PDC Series — Drainage Cutter
Drainage water and effluent carrying fibres and rags — a cutting impeller and cutter plate, 1–10 HP, up to 150 m³/hr and 25 m.

Common questions

Frequently Asked Questions

How do I read a PDS model name?

Left to right: the discharge size in mm, the series, then the duty point — flow in m³/hr and head in metres — and the motor in HP. 65PDS-40-9-3.0 is a 65 mm pump delivering about 40 m³/hr at 9 m head on a 3 HP motor.

When should we choose a sewage pump instead?

When the water carries more than soft solids. The PDS passes soft solids up to 20 mm. For sewage with solid or fibrous material, choose the PS Series (particles up to 270 mm); for fibrous material and hard dirt, the PC cutter pump. For clear water, the Horizontal Open Well pump.

Is there a single-phase version?

Yes — the series is built for single-phase and three-phase 50 Hz supplies. Tell us the supply at your site when you enquire, and we’ll confirm the model.

How do we service it without entering the sump?

Install it on an auto-coupling system. The pump lifts out on guide rails with no flange bolting and no sump entry, and its own weight reseals the connection on the way back down.
