High Pressure · Horizontal Multistage
Horizontal Multistage — PH2 & PH4
Centrifugal Multistage Pump

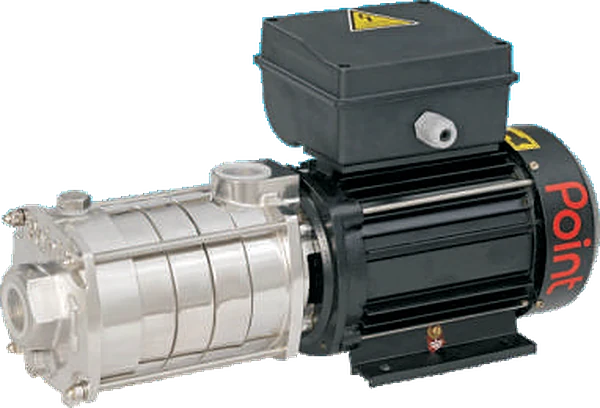

Horizontal centrifugal multistage pumps for high head at low flow: stainless steel impellers stacked stage on stage build the pressure, for pressure boosting, water circulation, mini RO systems and washing. Two series — PH2 up to 2.8 m³/hr and 94 m, PH4 up to 7 m³/hr and 58 m — from 0.5 to 2.5 HP.
- Flow
- 0.4 – 7 m³/hr
- Max head
- 94 m
- Rating
- 0.5 – 2.5 HP
- Speed
- 2900 rpm
What it’s for
Pressure Built Stage by Stage
Some duties need little water at a lot of pressure — feeding a mini RO unit, boosting supply to upper floors, a wash-down line. A single impeller can’t give that efficiently; a multistage pump stacks several, each adding head to the last. Point’s PH pumps do it horizontally, on a foot-mounted motor, with every wetted and rotating part in stainless steel and a wide range of seals for different liquids.
Two series share the construction. The PH2 covers small flows, 0.4 to 2.8 m³/hr, with seven models from 0.5 to 2.5 HP reaching up to 94 m of head; the PH4 takes larger flows, 1 to 7 m³/hr, with five models up to 58 m. For a complete pressure-boosting set, see the Pressure Booster Systems.
Construction
How It’s Built

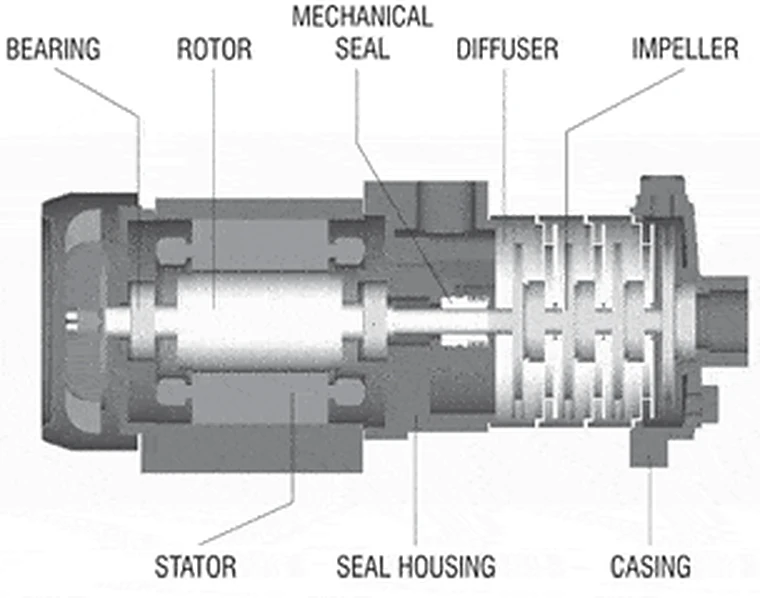

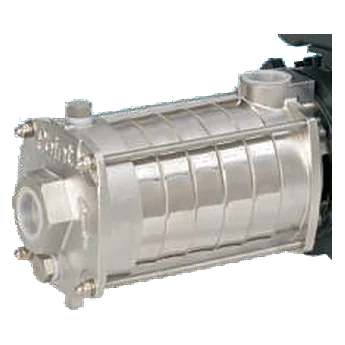

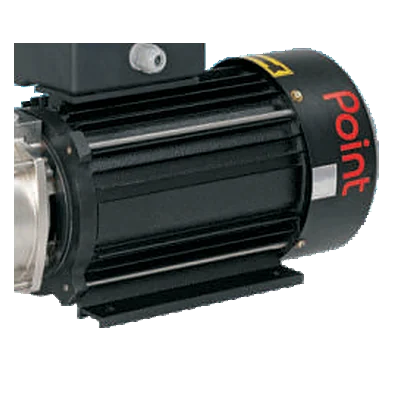

A foot-mounted motor driving a stack of stainless steel impellers and diffusers, sealed from the motor by a mechanical seal in its own housing.
Specifications
Technical Data
- Flow
- PH2 0.4 – 2.8 m³/hr · PH4 1 – 7 m³/hr
- Maximum head
- PH2 94 m · PH4 58 m
- Pipe size
- PH2 DN 25 × DN 25 · PH4 DN 32 × DN 25
- Liquid
- Clean water; very light, non-aggressive chemicals
- Motor
- 0.5 – 2.5 HP (0.37 – 2.0 kW)
- Speed
- 2900 rpm
- Mounting
- Horizontal, foot-mounted
- Wetted and rotating parts
- Stainless steel
- Mechanical seal
- A wide range, for different liquids
Hydraulics
Rating
Construction
- PH2-20
- 0.5 HP / 0.37 kW · 21 m at 0.4 m³/hr → 12.5 m at 2.8 m³/hr · A 90 · B 112
- PH2-30
- 0.75 HP / 0.6 kW · 28.5 m at 0.4 m³/hr → 17 m at 2.8 m³/hr · A 90 · B 112
- PH2-40
- 1.0 HP / 0.7 kW · 37.5 m at 0.4 m³/hr → 23 m at 2.8 m³/hr · A 90 · B 112
- PH2-50
- 1.0 HP / 0.7 kW · 46 m at 0.4 m³/hr → 28 m at 2.8 m³/hr · A 103 · B 128
- PH2-60
- 1.5 HP / 1.1 kW · 56 m at 0.4 m³/hr → 34 m at 2.8 m³/hr · A 103 · B 128
- PH2-80
- 2.0 HP / 1.5 kW · 82 m at 0.4 m³/hr → 54 m at 2.8 m³/hr
- PH2-100
- 2.5 HP / 2.0 kW · 94 m at 0.4 m³/hr → 70 m at 2.8 m³/hr
- PH4-20
- 0.75 HP / 0.6 kW · 22 m at 1.0 m³/hr → 7 m at 7.0 m³/hr · A 90 · B 112
- PH4-30
- 1.0 HP / 0.7 kW · 31 m at 1.0 m³/hr → 14 m at 7.0 m³/hr · A 90 · B 112
- PH4-40
- 1.5 HP / 1.1 kW · 41 m at 1.0 m³/hr → 19 m at 7.0 m³/hr · A 90 · B 112
- PH4-50
- 2.0 HP / 1.5 kW · 49 m at 1.0 m³/hr → 24 m at 7.0 m³/hr · A 156 · B 118
- PH4-60
- 2.5 HP / 2.0 kW · 58 m at 1.0 m³/hr → 29 m at 7.0 m³/hr · A 156 · B 118

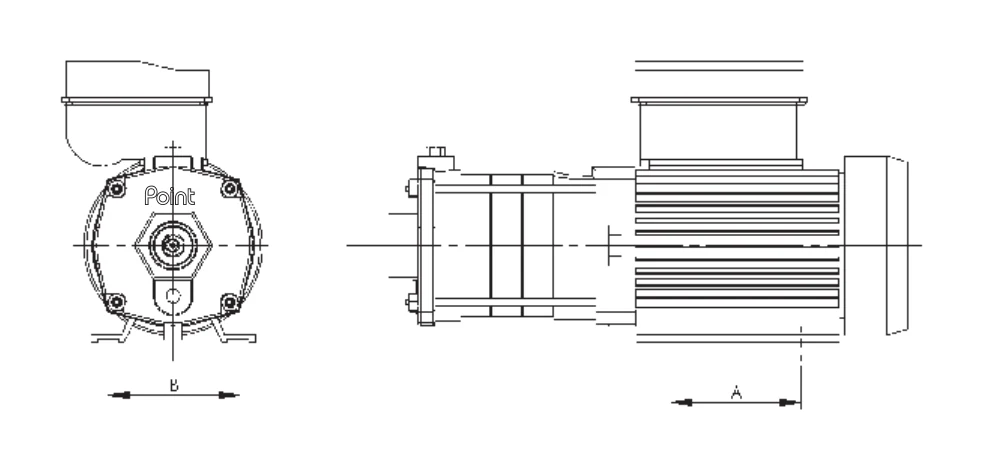

PH2 models — motor · head across the flow range · dimensions in mm
PH4 models — motor · head across the flow range · dimensions in mm
Applications
Where It’s Specified
Raising supply pressure for buildings and process lines. See pressure booster systems →
Circulating and distributing clean water where a steady pressure matters more than a large flow.
Feeding small reverse-osmosis units, which need steady pressure at low flow.
Washing and cleaning systems, pressure jet cleaning and high-pressure wash-down.
Process water systems, boiler feed and condensate return.
Transferring very light, non-aggressive chemicals, and refrigerant recycling. See industries we serve →
Compare
Bare Pump or Booster Set?
The PH pumps come on their own, or as a ready booster set with a pressure tank mounted on top.
-
Horizontal Multistage — PH2 & PH4You’re here
Stainless horizontal multistage pumps on their own — PH2 and PH4, 0.4–7 m³/hr, up to 94 m.
-
Pressure Booster Systems — PH Series Booster Set
A PH multistage pump with a pressure tank mounted on it, ready to fit — for 1 to 9 bathrooms, car washing and geysers.
Common questions
Frequently Asked Questions
PH2 or PH4 — which do we need?
Go by flow. The PH2 is for small flows, up to about 2.8 m³/hr; the PH4 for 1 to 7 m³/hr. Within a series, choose the model that gives the head you need at your flow — the technical data lists each model’s head at the bottom and top of its flow range. Tell us both figures and we’ll confirm the model.
What can it pump?
Clean water, and very light, non-aggressive chemicals. Every wetted and rotating part is stainless steel, and a wide range of mechanical seals is available — tell us the liquid and we’ll specify the seal.
How is it installed?
Horizontally, on the motor’s mounting feet, with the suction at the end of the pump and the discharge on top — DN 25 × DN 25 on the PH2, DN 32 × DN 25 on the PH4.
