Cutter Pump

Designed for pumping drainage water or effluent in residential, commercial or industrial applications — grey water, septic effluent, soft solids, hard dirt and effluent with a lot of fibrous material. Stationary and rotating cutters in En24/OHNS/D2, hardened to 55–60 HRC, cut it down at the intake.

Request a Spec Sheet See the Full Range

PC Series pump casings seen from the intake: the rotating cutter behind the opening on the left, the stationary cutter plate on the right — PC Series

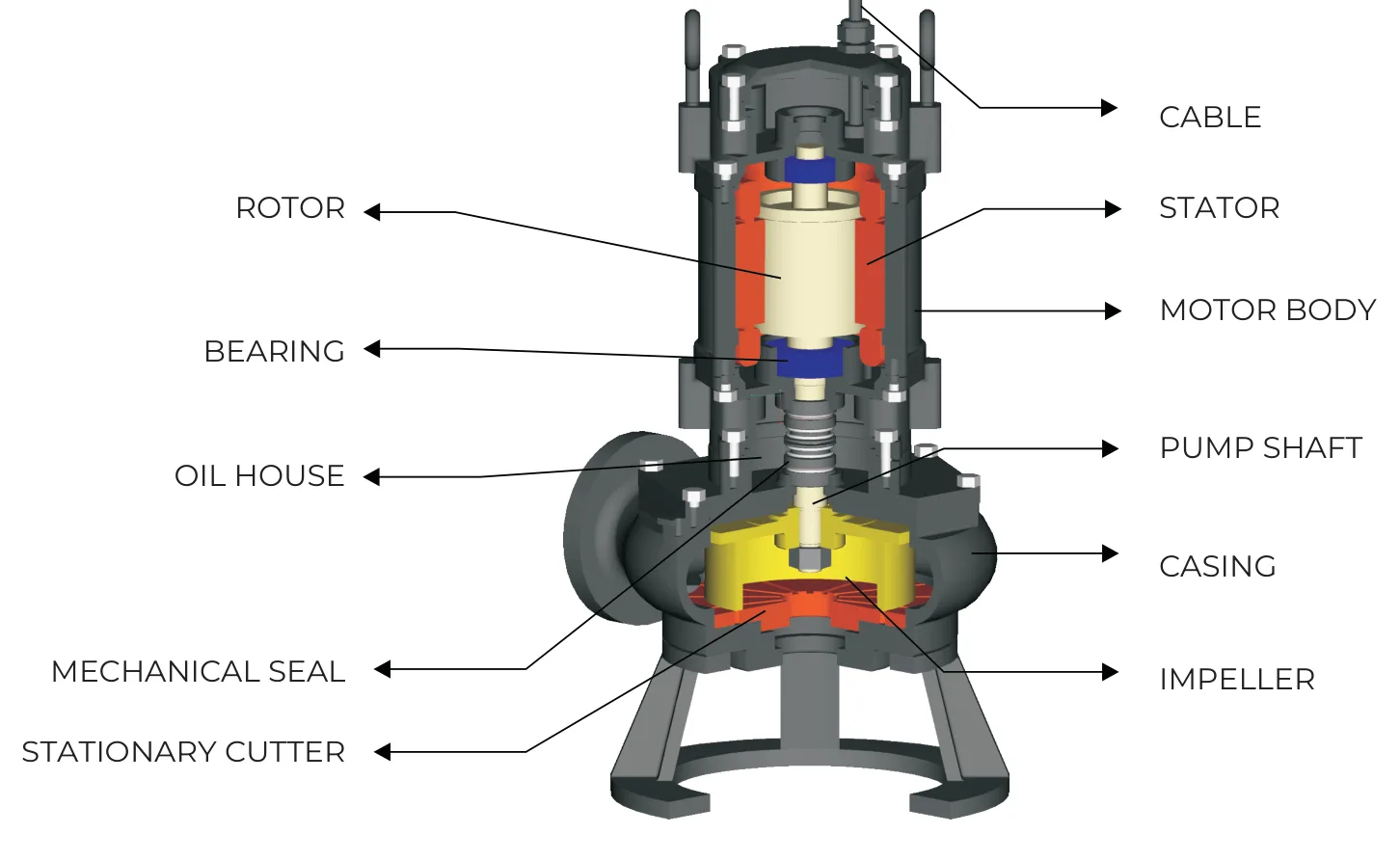

PC Series cutaway: rotor, stator and bearings in the motor body, the oil chamber and mechanical seal, the impeller in its casing, and the stationary cutter at the intake — PC Series

Flow: 2 – 300 m³/hr
Max head: 45 m
Particle size: up to 135 mm
Pipe size: up to 150 mm

What it’s for

Cut at the Intake, Before It Can Wrap

Fibre is what stops a sewage pump: rags, wipes and stringy material that wrap the impeller or bridge the intake. The PC Series deals with it before it gets that far. A rotating cutter turns against a stationary cutter plate at the intake, both in tool steels hardened to 55–60 HRC, so fibrous material, soft solids and hard dirt are cut down as they enter — sharpened knife edges cut small, flexible solids before they ever reach the impeller.

Fifty-two catalogue models from 1 to 15 HP cover 32 to 150 mm discharges, on the same motor, seal and casing construction as Point’s other sewage pumps. Where the solids are large but not fibrous, the PS Series passes them whole; where the water carries only soft solids, the PDS drainage pump.

Construction

How It’s Built

A sewage pump with a cutting stage at the intake: hardened stationary and rotating cutters below the impeller, in the same motor, seal and casing as the rest of the range.

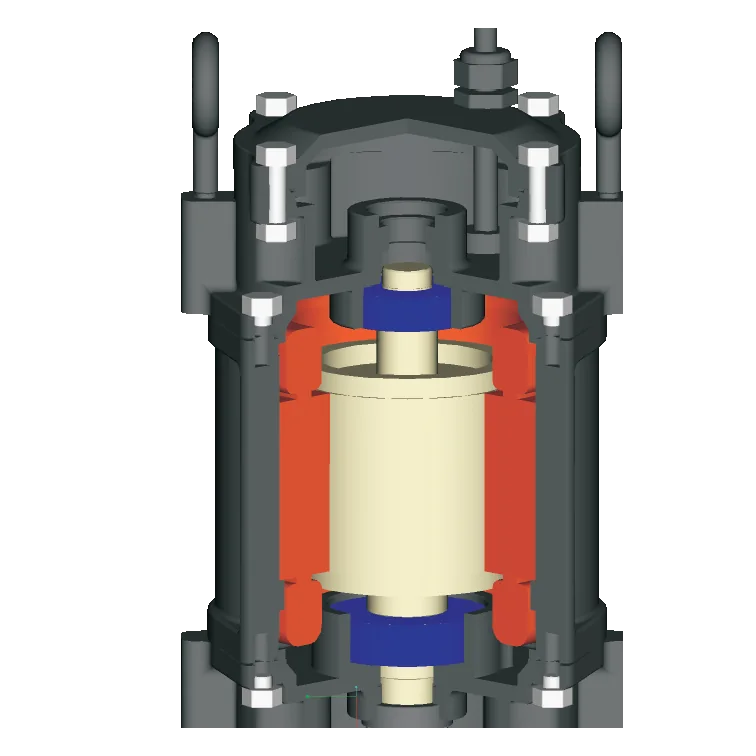

Cutaway of the PC motor: stator around the rotor, with a bearing above and below — 01 **Motor** 230 V or 415 V · 1Ø and 3Ø, 50 Hz · 1440 / 2880 rpm · IP68 · Class F

Cutaway of the mechanical seal on the pump shaft, below the oil chamber — 02 **Mechanical Seal** Carbon · ceramic · SIC · TC, below an oil chamber

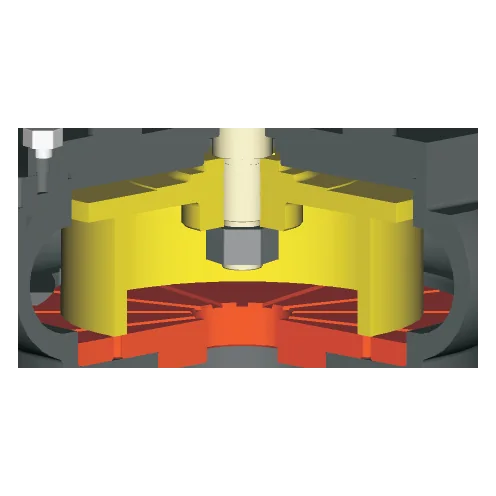

Cutaway of the impeller in its casing, above the stationary cutter — 03 **Impeller** FG200 / GG20, steel castings

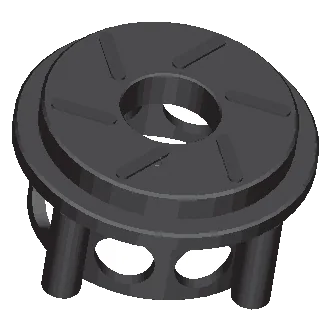

PC cutter block: the grooved stationary cutter plate on its cage — 04 **Cutters** Stationary En24 / OHNS / D2, 55–60 HRC · cutter block En36 or OHNS, hardened

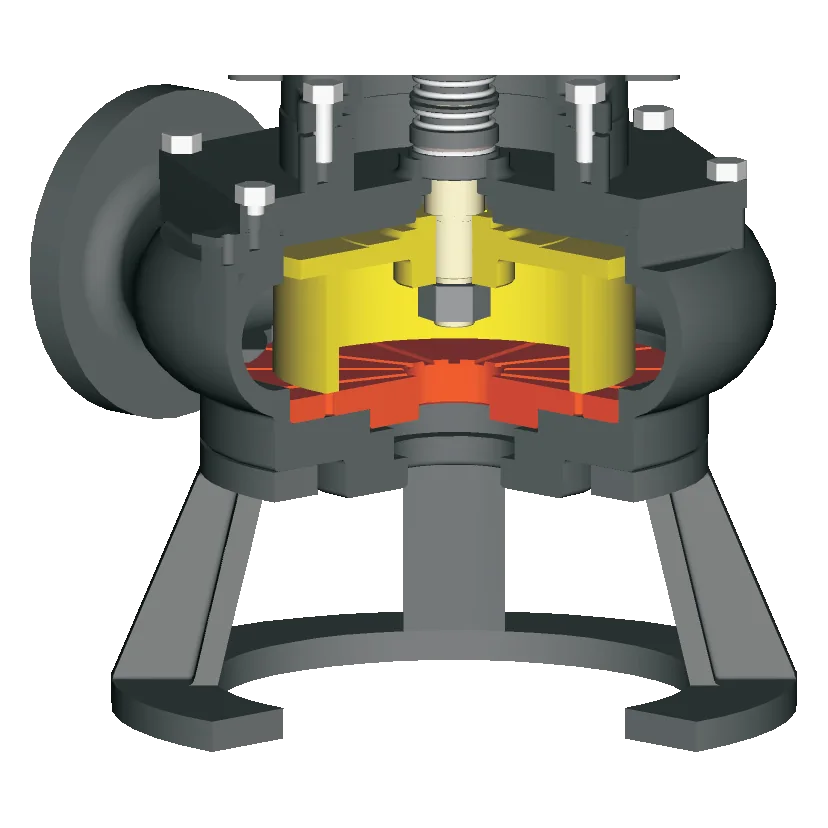

Cutaway of the pump casing with its flanged discharge, on the stand — 05 **Pump Casing** FG200 / GG20

Specifications

Technical Data

Flow: 2 – 300 m³/hr
Maximum head: 45 m
Maximum particle size: 135 mm
Recommended particle size: 40% of the discharge size
Pipe size: up to 150 mm
Pumping medium: Grey water, septic effluent, soft solids, hard dirt, rubber, resin, plastic, fibrous effluent
Supply: 230 V · 415 V
Phase: 1Ø and 3Ø, 50 Hz
Speed: 1440 / 2880 rpm
Protection: IP68
Insulation: Class F
Stationary cutter A: En24 / OHNS / D2, fully hardened 55–60 HRC
Stationary cutter B: En24 / OHNS / D2, fully hardened 55–60 HRC
Cutter block: En36 case-hardened steel, or OHNS hardened
PC cutter: Stationary plate En24 / D2 · rotating cutter En36 with D2 inserts
Pump casing: FG200 / GG20
Impeller: FG200 / GG20, steel castings
Shaft: SS431 / 1.4057 · SS420 / 1.4021
Mechanical seal: Carbon · ceramic · SIC · TC

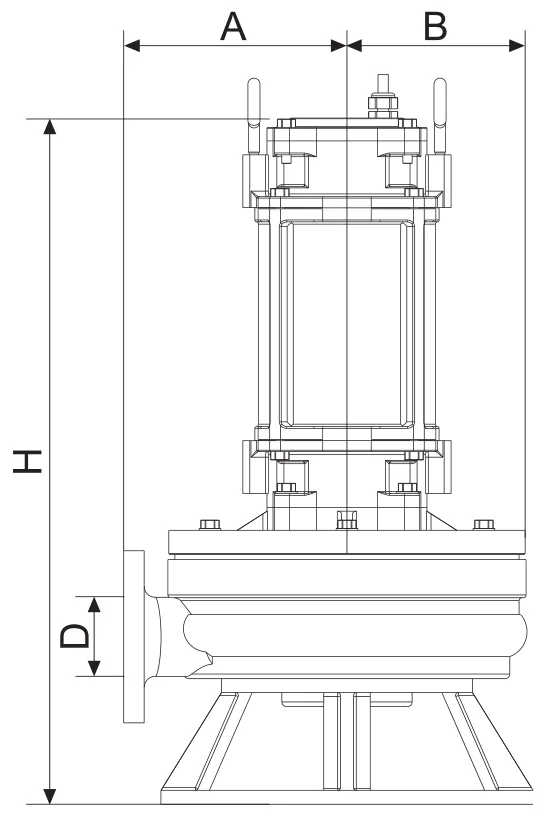

32PC-7-14-1.0: 1.0 HP / 0.7 kW · 29 mm · A 212 · B 103 · D 32 · H 575
32PC-8-12-1.0: 1.0 HP / 0.7 kW · 29 mm · A 212 · B 103 · D 32 · H 575
40PC-10-10-1.0: 1.0 HP / 0.7 kW · 36 mm · A 212 · B 103 · D 40 · H 575
40PC-12-8-1.0: 1.0 HP / 0.7 kW · 36 mm · A 212 · B 103 · D 40 · H 575
50PC-14-7-1.0: 1.0 HP / 0.7 kW · 45 mm · A 212 · B 103 · D 50 · H 575
40PC-10-14-1.5: 1.5 HP / 1.1 kW · 36 mm · A 212 · B 103 · D 40 · H 640
40PC-12-12-1.5: 1.5 HP / 1.1 kW · 36 mm · A 212 · B 103 · D 40 · H 640
50PC-14-10-1.5: 1.5 HP / 1.1 kW · 45 mm · A 212 · B 103 · D 50 · H 640
50PC-16-9-1.5: 1.5 HP / 1.1 kW · 45 mm · A 212 · B 103 · D 50 · H 640
50PC-8-18-1.5: 1.5 HP / 1.1 kW · 45 mm · A 212 · B 103 · D 50 · H 640
50PC-12-16-2.0: 2.0 HP / 1.5 kW · 45 mm · A 212 · B 103 · D 50 · H 640
50PC-14-14-2.0: 2.0 HP / 1.5 kW · 45 mm · A 212 · B 103 · D 50 · H 640
50PC-16-12-2.0: 2.0 HP / 1.5 kW · 45 mm · A 212 · B 103 · D 50 · H 640
50PC-11-18-2.0: 2.0 HP / 1.5 kW · 45 mm · A 212 · B 103 · D 50 · H 640
50PC-15-20-3.0: 3.0 HP / 2.2 kW · 45 mm · A 212 · B 103 · D 50 · H 570
50PC-25-15-3.0: 3.0 HP / 2.2 kW · 45 mm · A 212 · B 103 · D 50 · H 570
50PC-42-9-3.0: 3.0 HP / 2.2 kW · 45 mm · A 212 · B 103 · D 50 · H 570
65PC-25-15-3.0: 3.0 HP / 2.2 kW · 59 mm · A 245 · B 163 · D 65 · H 570
80PC-50-8-3.0: 3.0 HP / 2.2 kW · 72 mm · A 279 · B 177 · D 80 · H 570
80PC-40-7-3.0: 3.0 HP / 2.2 kW · 72 mm · A 279 · B 177 · D 80 · H 570
50PC-17-25-4.0: 4.0 HP / 3.0 kW · 45 mm · A 238 · B 123 · D 50 · H 570
65PC-37-13-4.0: 4.0 HP / 3.0 kW · 59 mm · A 245 · B 163 · D 65 · H 570
80PC-43-13-4.0: 4.0 HP / 3.0 kW · 72 mm · A 279 · B 177 · D 80 · H 570
80PC-50-10-4.0: 4.0 HP / 3.0 kW · 72 mm · A 279 · B 177 · D 80 · H 570
50PC-24-20-5.0: 5.0 HP / 3.7 kW · 45 mm · A 238 · B 123 · D 50 · H 660
50PC-40-15-5.0: 5.0 HP / 3.7 kW · 45 mm · A 238 · B 123 · D 50 · H 660
50PC-15-40-7.5: 7.5 HP / 5.5 kW · 45 mm · A 193 · B 203 · D 50 · H 740
50PC-25-32-7.5: 7.5 HP / 5.5 kW · 45 mm · A 193 · B 203 · D 50 · H 740
50PC-25-38-10.0: 10 HP / 7.5 kW · 45 mm · A 193 · B 203 · D 50 · H 740
65PC-25-28-5.0: 5.0 HP / 3.7 kW · 59 mm · A 274 · B 202 · D 65 · H 660
80PC-40-15-5.0: 5.0 HP / 3.7 kW · 59 mm · A 279 · B 177 · D 80 · H 660
80PC-60-13-5.0: 5.0 HP / 3.7 kW · 72 mm · A 279 · B 177 · D 80 · H 660
80PC-50-25-10.0: 10 HP / 7.5 kW · 72 mm · A 300 · B 195 · D 80 · H 740
100PC-80-7-4.0: 4.0 HP / 3.0 kW · 90 mm · A 250 · B 186 · D 100 · H 570
100PC-100-5-4.0: 4.0 HP / 3.0 kW · 90 mm · A 250 · B 186 · D 100 · H 570
100PC-80-9-5.0: 5.0 HP / 3.7 kW · 90 mm · A 250 · B 186 · D 100 · H 660
100PC-100-7-5.0: 5.0 HP / 3.7 kW · 90 mm · A 250 · B 186 · D 100 · H 660
100PC-65-15-7.5: 7.5 HP / 5.5 kW · 90 mm · A 292 · B 194 · D 100 · H 740
100PC-110-10-7.5: 7.5 HP / 5.5 kW · 90 mm · A 292 · B 194 · D 100 · H 740
100PC-80-20-10.0: 10 HP / 7.5 kW · 90 mm · A 292 · B 194 · D 100 · H 740
100PC-100-15-10.0: 10 HP / 7.5 kW · 90 mm · A 292 · B 194 · D 100 · H 740
100PC-80-22-12.5: 12.5 HP / 9.3 kW · 90 mm · A 266 · B 175 · D 100 · H 890
100PC-100-16-12.5: 12.5 HP / 9.3 kW · 90 mm · A 266 · B 175 · D 100 · H 890
100PC-50-35-15.0: 15 HP / 11 kW · 90 mm · A 266 · B 175 · D 100 · H 890
100PC-70-30-15.0: 15 HP / 11 kW · 90 mm · A 266 · B 175 · D 100 · H 890
150PC-110-15-10.0: 10 HP / 7.5 kW · 135 mm · A 286 · B 227 · D 150 · H 765
150PC-110-16-12.5: 12.5 HP / 9.3 kW · 135 mm · A 286 · B 227 · D 150 · H 890
150PC-145-9-10.0: 10 HP / 7.5 kW · 135 mm · A 286 · B 227 · D 150 · H 765
150PC-210-7-10.0: 10 HP / 7.5 kW · 135 mm · A 286 · B 227 · D 150 · H 765
150PC-150-9-12.5: 12.5 HP / 9.3 kW · 135 mm · A 286 · B 227 · D 150 · H 890
150PC-220-7-12.5: 12.5 HP / 9.3 kW · 135 mm · A 286 · B 227 · D 150 · H 890
150PC-170-15-15.0: 15 HP / 11 kW · 135 mm · A 286 · B 227 · D 150 · H 1040

Applications

Where It’s Specified

Septic effluent

Septic tank and soak-pit effluent from homes, apartments and commercial buildings, with the rags and fibre it carries.

Grey water & drainage

Grey water and drainage in residential, commercial and industrial buildings where soft solids and hard dirt come with it.

Fibrous effluent

Effluent with a lot of fibrous material — the duty where an uncut impeller wraps and stops. See industries we serve →

Sump emptying

Emptying sumps of waste water with soft solids in suspension, hard dirt, rubber, resin or plastic — the cutter takes them down before they reach the impeller.

Treatment plant inlets

Lifting raw effluent into sewage and effluent treatment plants ahead of screening, with the fibre already cut down.

Compare

Cutter or Another Series?

The PC cuts fibrous and hard material. Where the solids are larger, need chopping or grinding, settle in the sump, or are only soft, another series fits better.

PC SeriesYou’re here
Stationary and rotating cutters hardened to 55–60 HRC for fibrous and hard material, 2–300 m³/hr to 45 m.
PG Series — Grinder
Solid- and fibre-laden sewage at 2–300 m³/hr to 45 m head — particles up to 135 mm.
PCC Series — Chopper
Chops oversized solids and stringy material at 7–1000 m³/hr to 30 m head.
PCG Series — Chopper Grinder
Chopper cutter plus hardened screw rotor for oversized and stringy material, 7–1000 m³/hr to 30 m — the series for biogas feedstock.
PS Series — Sewage
Passes solids and fibre through a large discharge — 2–800 m³/hr to 45 m, particles up to 270 mm.
PDC Series — Drainage Cutter
Drainage water and effluent carrying fibres and rags — a cutting impeller and cutter plate, 1–10 HP, up to 150 m³/hr and 25 m.
PA Series — Agitator Slurry
Agitates settled solids back into suspension before transfer — 2–300 m³/hr to 45 m, particles up to 135 mm.
PDS Series — Drainage
Grey water, drainage and effluent with soft solids to 20 mm — 1–10 HP at 2880 rpm, up to 100 m³/hr and 30 m head.

Common questions

Frequently Asked Questions

How does the cutter work?

A rotating cutter on the pump shaft turns against a stationary cutter plate at the intake. Fibrous material, soft solids and hard dirt are cut as they pass between them, before they reach the impeller — so rags and stringy material can’t wrap it.

PC, PG or PS — which do we need?

Choose the PC where the effluent carries fibre — rags, wipes, stringy material — or hard dirt. The PG grinder pump handles the same solid- and fibre-laden sewage over the same range; the PS Series passes large solids whole, without cutting, at flows up to 800 m³/hr.

How do I read a PC model name?

Left to right: the discharge size in mm, the series, then the duty point — flow in m³/hr and head in metres — and the motor in HP. 100PC-80-20-10.0 is a 100 mm pump delivering about 80 m³/hr at 20 m head on a 10 HP motor.

What are the cutters made of?

Tool steels, hardened for the job: stationary cutters in En24, OHNS or D2 fully hardened to 55–60 HRC, and the rotating cutter in En36 with D2 inserts. Tell us what the effluent carries when you enquire, and we’ll specify the cutting assembly.

Tell us what’s in the effluent, and we’ll size the
pump.
