Solid-Liquid Separator
Solid-Liquid Separator
A screw-press separator that dewaters slurry into a solid cake and a clarified liquid — fully automated, continuous processing with minimal manual intervention. Used for sludge dewatering in treatment plants and, on the biogas side, for separating digested slurry into a solid fertilizer cake and a liquid fraction after digestion.
- Motor
- 5 HP · 1400 rpm · three-phase
- Gearbox ratio
- 30:1
- Filter screening
- Stainless steel, grade 304
- Footprint
- 1500 × 650 mm base
What it’s for
Continuous Dewatering, Minimal Intervention

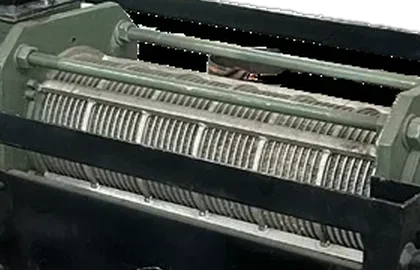

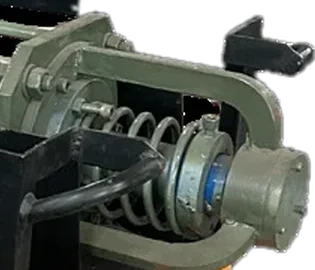

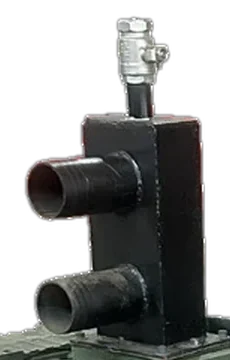

Slurry feeds into the hopper and is carried by a screw through a stainless steel filter housing, pressing liquid out through the screening while the compacted solids are carried on to discharge — a continuous process rather than a batch cycle, so it runs unattended once fed.

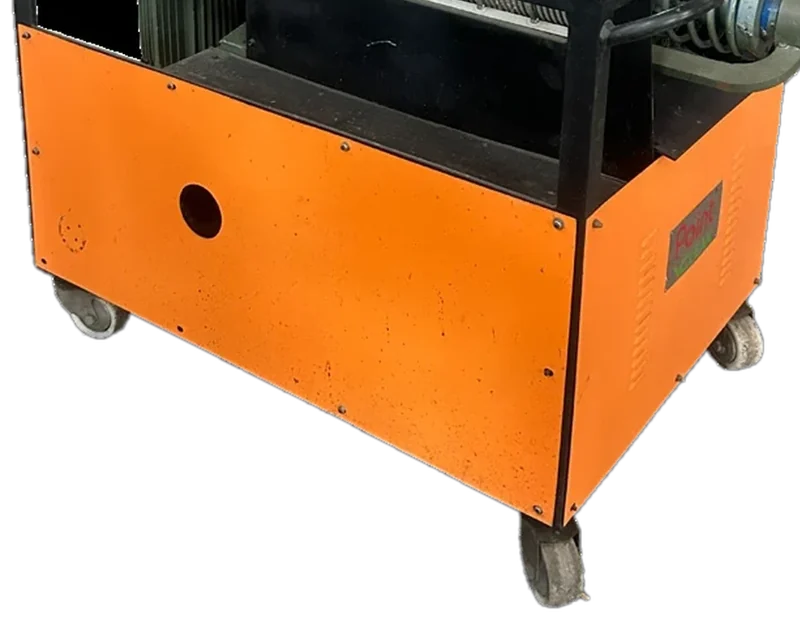

The filter screening is stainless steel grade 304 for corrosion resistance and long service life; the frame and main base are mild steel channel to IS 2062. The unit is mounted on rubber-tyred wheels, so it can be moved between duties rather than fixed to one line, and its straightforward design keeps day-to-day operation and routine servicing simple.
Construction
How It’s Built
Specifications
Technical Data
- Main base
- 1500 × 650 mm — mild steel channel 75 × 40 × 5 mm, IS 2062
- Height
- 730 mm — mild steel channel 75 × 40 × 5 mm, IS 2062
- Height with rubber tyres
- 805 mm — mild steel channel 75 × 35 × 5 mm, IS 2062
- Filter screening
- Stainless steel, grade 304

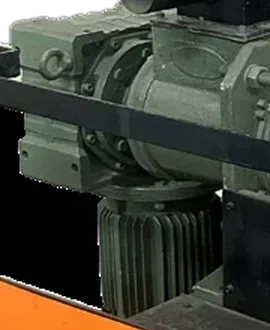

- Motor
- 5 HP, 1400 rpm, three-phase
- Gearbox
- 30:1 ratio, EM Power
Construction
Drive
- Operation
- Fully automated — minimal manual intervention
- Processing
- Continuous, high-capacity solid-liquid separation
- Energy use
- Optimized for low power consumption
- Construction
- Corrosion-resistant stainless steel
- Footprint
- Compact — suited to limited installation space
- Configuration
- Available tailored to specific process requirements
Features
Applications
Where It’s Specified
Continuous dewatering of municipal and industrial sludge, delivering effective separation with high processing capacity.
Separates digested slurry from biogas and anaerobic digestion plants into a solid fertilizer cake and a liquid fraction — the step after digestion, feeding the pre-processing range upstream of it.
Livestock farms — cattle, dairy, poultry and pig — and agricultural waste management systems, where manure and farm residue need dewatering before storage, composting or land application.
Distillery and brewery waste treatment, cassava and starch processing, food and beverage processing, and organic waste and composting facilities.
Common questions
Frequently Asked Questions
Is this an STP product or a biogas product?
Both. It's built for sludge dewatering in treatment plants, and the same machine separates digested slurry into a solid fertilizer cake and a liquid fraction after biogas digestion — so it appears in both ranges.
Does it run continuously or in batches?
Continuously. Slurry feeds in and solids discharge on an ongoing basis rather than a fill-and-empty cycle, which is what keeps manual intervention to a minimum.
Can it be configured for a specific process?
Yes — it's available in configurations tailored to specific process requirements rather than a single fixed specification.
